Guangdong Ap Tenon Sci. & Tech. Co., Ltd. is one of the most reliable manufacturers and suppliers of smart steel entry doors in China. The company has world-leading production equipment and strong manufacturing capabilities. Please feel free to wholesale OEM smart steel entry doors made in China here from our factory.

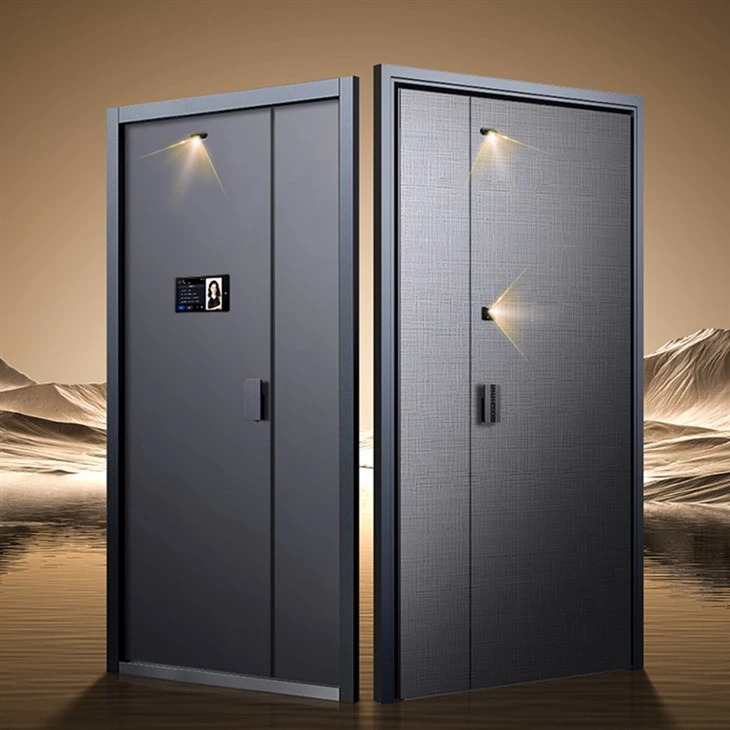

Tenon M7 Steel Smart Door
The Tenon M7 Steel Smart Door combines a rugged, durable steel structure with advanced intelligent security technology, perfectly balancing safety, sealing performance, and aesthetics.
The door panel features the Tenon Nano-coating process and T-shaped omnidirectional luxury airtight seals, significantly enhancing corrosion resistance and acoustic insulation. Internally, it is reinforced with XPS high-density flame-retardant boards for superior thermal and fire protection. Equipped with three optional intelligent systems (MS/MF/ML), a 6-bolt heavy-duty solid steel lock body, and a C-grade lock cylinder, the M7 provides multi-layered, reliable protection.
Featuring a sleek design with three hidden hinges, dual external cameras, and an optional internal camera, the M7 is powered by a lithium battery with optional mains power integration. It is the ideal solution for homes, communities, hotels, and apartments, supporting custom sizing and various partnership models (OEM, Brand Agency, Project Solutions, Wholesale, etc.).
Specification
|
Product name |
Tenon M7 steel smart door |
|
Model |
Tenon M7 |
|
Panel process |
Tenon nanometre coating technology |
|
T-shaped door panel technology |
Full-directional luxurious air-tight adhesive strip covering, T-shaped door |
|
Padding |
XPS high-density flame-retardant board |
|
Lock body |
MS intelligent system/MF intelligent system/ML intelligent system + 6 heavy solid core steel lock body |
|
Hinges |
Conceal hinges *3 |
|
Panel material |
Steel |
|
Camera |
Outside:2 cameras; |
|
Batter |
Lithium battery (can be accessed to mains supply) |
|
Standard height |
2050mm(80.71in)/2150mm(84.65in)/2250mm(88.58in) |
|
Standard width |
960mm(37.8in)/1050mm(41.34in)/1160mm(45.67in) |
|
Size |
Can be customized |
Product Features
Panel Craftsmanship: Tenon Nano-coating technology for enhanced weather resistance and anti-scratch durability.
T-Shaped Structure: Full-coverage luxury airtight rubber strips ensure industry-leading sealing and soundproofing.
Insulation Core: Filled with XPS high-density flame-retardant boards for excellent thermal, acoustic, and fire resistance.
Smart Systems: Supports MS / MF / ML intelligent configurations to flexibly match different security requirements.
High-Security Locking: 6-bolt heavy-duty solid steel lock body + C-grade lock cylinder for maximum anti-pry and anti-force entry protection.
Hinge Design: 3× hidden hinges for a seamless look and smooth, secure operation.
Build Quality: Constructed with premium steel; both internal and external panels are reinforced steel for structural stability.
Camera Configuration: Dual external cameras and one optional internal camera; supports visitor logs and real-time visual intercom.
Power Supply: High-capacity lithium battery with hardwired mains power support for continuous operation and easy maintenance.
Dimensions & Customization: Standard Heights: 2050 / 2150 / 2250 mm
Standard Widths: 960 / 1050 / 1160 mm
Custom sizes available upon request.
Corporate Advantages & Cooperation
Why Choose Tenon? Tenon provides integrated services spanning R&D, design, manufacturing, and marketing support. We possess the capacity for both bespoke customization and high-volume supply of smart locks and smart doors across diverse applications.
Cooperation Models: We welcome partnerships via OEM/ODM, Brand Agency, Project/Engineering Solutions, and Wholesale channels.
